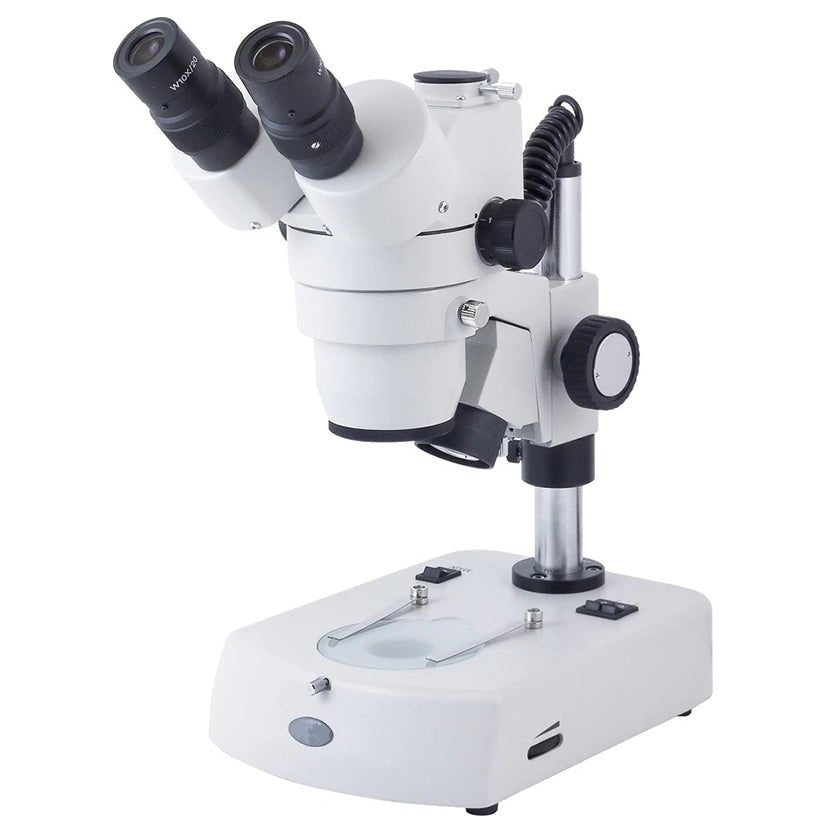

Trinocular PRO Zoom Stereo Microscope

The SMZ stereo is a serious piece of of precise optical engineering equipment suitable for both education and industry. The standard zoom range is 7X - 45X though with optional auxiliary lenses it can be configured to 3.5X - 180X. This trinocular model has a dedicated photo tube for dual viewing. It meets high-precision requirements of modern biology, medicine, scientific research, inspection lines in modern electronics and other technological industries. All optical components are multi coated which create crisp, high resolution  images across the entire field of view.

INQUIRE ABOUT OUR MICROSCOPE VIDEO CAMERAS

and here

The optical system provides clear stereoscopic images sturdy enough to operate in harsh environments of classrooms or laboratories.

• Microscope head TRINOCULAR  45°, 360° rotating, F.N. 20
• Widefield eyepieces WF10X/20mm, diopter adjustment on both eyepiece tubes
• 4.1 Zoom ratio, WD=80mm
• Magnification range: 7-45 X
• Possible magnification with additional objectives of 3.5X up to 60X
• N2GG: Base stand with pole and head holder
• Dual illumination
• 12V/15W incident and 12V/10W transmitted halogen illumination with intensity control
• Main supply 220V-240V (CE)
• Black/white and frosted glass stage plates O 80mm, blue filter and dust cover



SZMEWh10X20	High eyepoint wide field plan eyepiece WF10X/20mm
SZM7045	45° inclined binocular head, diopter adjustment of range ±5mm, the inter-pupillary distance adjustable between 54-75mm. Zoom objective 0.7X-4.5X, working distance 100mm
SZM7045TR	45° inclined trinocular head, diopter adjustment of range ±5mm, the inter-pupillary distance adjustable between 54-75mm. Zoom objective 0.7X-4.5X, working distance 100mm
SZMA1	Focus arm with tension adjustable, adjust range 50mm
SZMST2	Pillar type stand, post height 248mm, base size:200X255X60mm, bottom illuminator with 12V/15W halogen lamp, brightness is adjusted separately.
SZML1	Top illuminator with 12V/15W halogen lamp
SZMCTV0.5	0.5X C-mount adapter
PACKING	foam+carton
